• ZB-1307 Shape size: 12.8 × 12.8 × h6.5

    ZB-1307 Shape size: 12.8 × 12.8 × h6.5

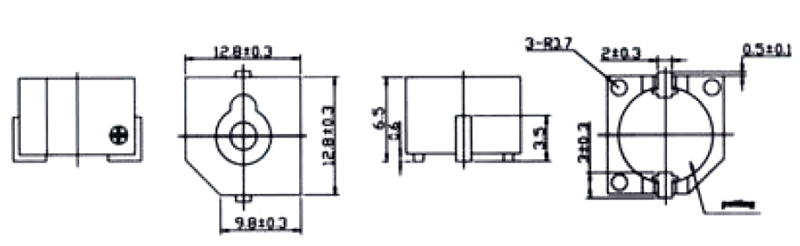

    Dimensions:

    • UNIT: mm
    • Tolerance: ±0.5mm
    • Reflow Solderable and Washable

    PDF

ZB-1307 Shape size: 12.8 × 12.8 × h6.5
Please Click products below, and click Add to Inquiry List for inquiry.
Part No. Rated Voltage (V) Operating Voltage(V) *Rated Current(MAX) (mA) *Min Sound Output at 10 cm (dB) Coil Resistance (Ω) *Resonant Frequency (Hz) Lead Pin Material

ZB-1307-01

1.5

1-3

30

80

15±3

2400

Brass

ZB-1307-05

5

3.8

40

85

45±5

2400

Brass

ZB-1307-12

12

8-16

40

85

140±14

2400

Brass
