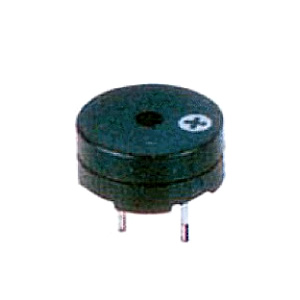

• ZB-09 Shape size: Φ9 × h4.0

    ZB-09 Shape size: Φ9 × h4.0

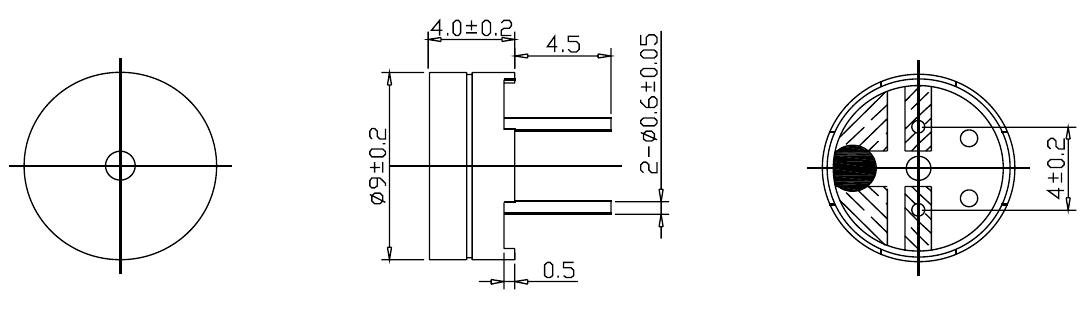

    Dimensions:

    • UNIT: mm
    • Tolerance: ±0.5mm

    PDF

ZB-09 Shape size: Φ9 × h4.0
Please Click products below, and click Add to Inquiry List for inquiry.
Part No. Rated Voltage (V) Operating Voltage (V) *Rated Current(MAX) (mA) *Min Sound Output at 10 cm (dB) Coil Resistance (Ω) *Resonant Frequency (Hz)

ZB-0901

1.5

1-3

80

80

5.5±2

2731

ZB-0903

3.6

2-5

90

83

15±2

2731

ZB-0905

5

3-8

60

85

45±4

2731
