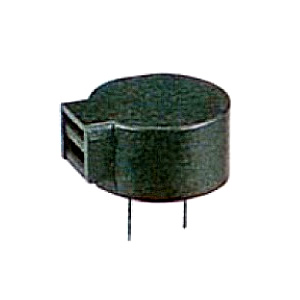

• ZB-96C Shape size: Φ9.6 × h5.0

    ZB-96C Shape size: Φ9.6 × h5.0

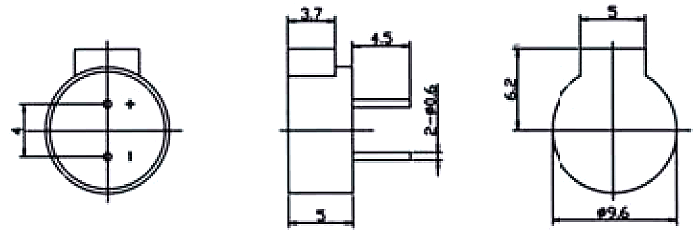

    Dimensions:

    • UNIT: mm
    • Tolerance: ±0.5mm

    PDF

ZB-96C Shape size: Φ9.6 × h5.0
Please Click products below, and click Add to Inquiry List for inquiry.
Part No. Rated Voltage (V) Operating Voltage(V) *Rated Current(MAX) (mA) *Min Sound Output at 10 cm (dB) Coil Resistance (Ω) *Resonant Frequency (Hz)

ZB-9601C

1.5

3.5

80

85

5.5±1

2731

ZB-9603C

3.5

2-4

60

85

25±1

2731

ZB-9605C

5

4-6

60

85

40±4

2731
