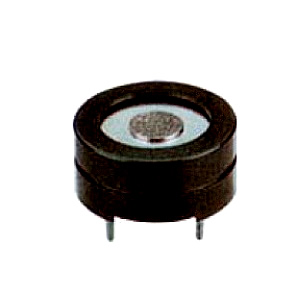

• ZB12-105 Shape size: Φ12 × h5.4

    ZB12-105 Shape size: Φ12 × h5.4

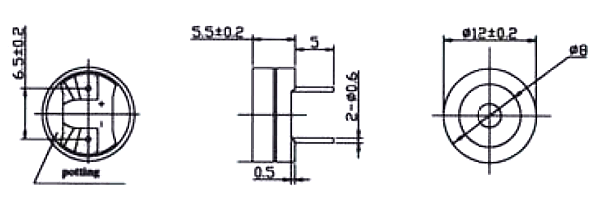

    Dimensions:

    • UNIT: mm
    • Tolerance: ±0.5mm

    PDF

ZB12-105 Shape size: Φ12 × h5.4
Please Click products below, and click Add to Inquiry List for inquiry.
Part No. Rated Voltage (V) Operating Voltage (V) *Rated Current(MAX) (mA) *Min Sound Output at 10 cm (dB) Coil Resistance (Ω) *Resonant Frequency (Hz)

ZB12-105A

1.5

1-3

30

75

16±4

2048

ZB12-105B

1.5

1-3

15

70

42±6

2048

ZB12-105C

1.5

1-3

12

70

50±7.5

2048
