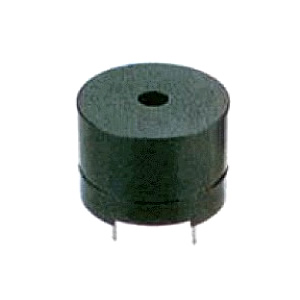

• ZB-12F Shape size: Φ12 × h8.5

    ZB-12F Shape size: Φ12 × h8.5

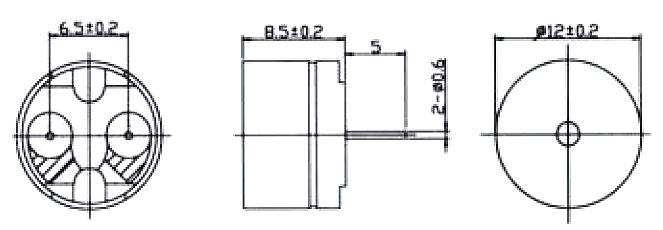

    Dimensions:

    • Unit: mm
    • Tolerance: ±0.5mm

    PDF

ZB-12F Shape size: Φ12 × h8.5
Please Click products below, and click Add to Inquiry List for inquiry.
Part No. Rated Voltage (V) Operating Voltage (V) *Rated Current(MAX) (mA) *Min Sound Output at 10 cm (dB) Coil Resistance (Ω) *Resonant Frequency (Hz)

ZB-12F-1P

1.5

1-3

30

85

16±4

2048

ZB-12F-11P

1.5

1-3

15

85

42±6

2048

ZB-12F-111P

1.5

1-3

12

80

50±7.5

2048
