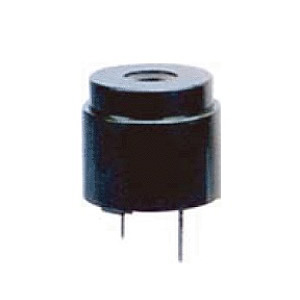

• ZB16 Shape size: Φ16 × h14.0

    ZB16 Shape size: Φ16 × h14.0

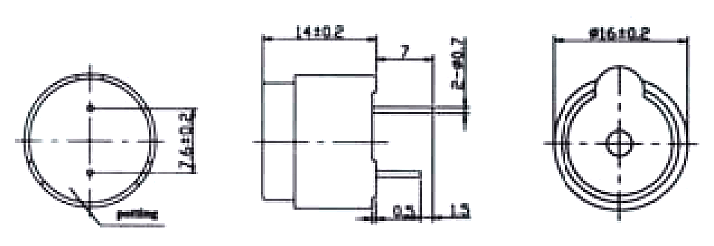

    Dimensions:

    • Unit: mm
    • Tolerance: ±0.5mm
    • Wave Solderable and Washable

    PDF

ZB16 Shape size: Φ16 × h14.0
Please Click products below, and click Add to Inquiry List for inquiry.
Part No. Rated Voltage (V) Operating Voltage (V) *Rated Current(MAX) (mA) *Min Sound Output at 10 cm (dB) Coil Resistance (Ω) *Resonant Frequency (Hz)

ZB-1601

1.5

1-3

18

80

27±3

2048

ZB-1606

6

4-8

40

85

50±5

2048

ZB-1612

12

9-15

40

85

115±12

2048
