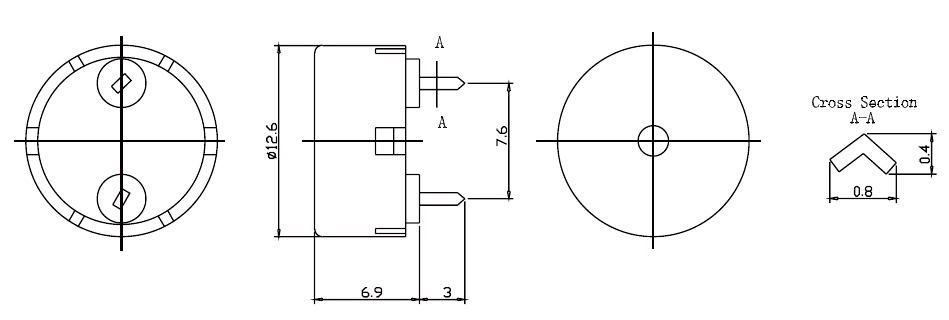

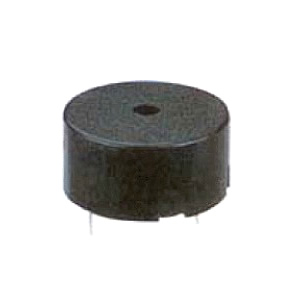

• ZB-PT-1307 Shape size: Φ12.6 × h6.9

    ZB-PT-1307 Shape size: Φ12.6 × h6.9

    Dimensions:

    • UNIT: mm
    • Tolerance: ±0.5mm

    PDF

ZB-PT-1307 Shape size: Φ12.6 × h6.9
Please Click products below, and click Add to Inquiry List for inquiry.
Part No. Rated Voltage(Square Ware) (Vp-p) Operating Voltage (Vp-p) *Rated Current(MAX) (mA) *Min Sound Output at 10 cm (dB) *Resonant Frequency (Hz) Capacitance at 120Hz Lead Pin Material

ZB-PT-1307

3

1-25

2

70

4000±500

12000±30%

Phoshpor Bronze
