• ZB-8504 Shape size: 8.5 × 8.5 × h4.0

    ZB-8504 Shape size: 8.5 × 8.5 × h4.0

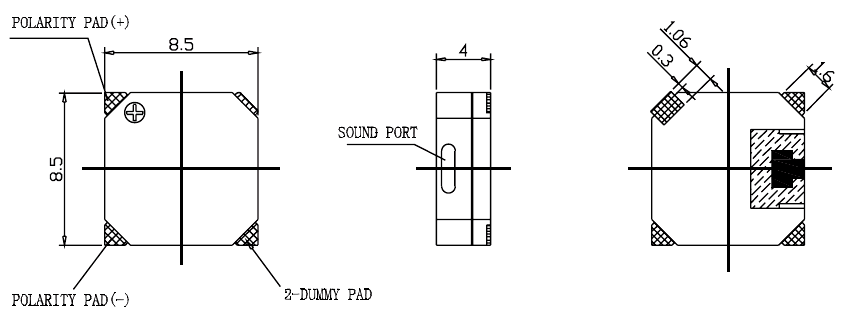

    Dimensions:

    • UNIT: mm
    • Tolerance: ±0.5mm

    PDF

ZB-8504 Shape size: 8.5 × 8.5 × h4.0
Please Click products below, and click Add to Inquiry List for inquiry.
Part No. Rated Voltage (V) Operating Voltage *Rated Current(MAX) (mA) *Min Sound Output at 10 cm (dB) Coil Resistance (Ω) *Resonant Frequency (Hz)

8504A

3.6

2.5-4.5

90

85 (typ88)

16±3

2730

8504B

3.6

2.5-4.5

90

87 (typ90)

16±3

3000
